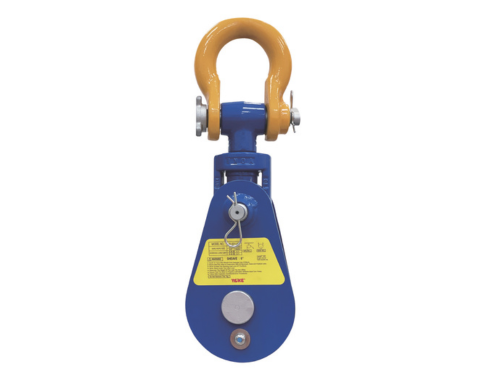

Super Snatch Block with Shackle
Item No.8-551
● YOKE Super Snatch Blocks are manufactured from high-quality high-tensile steel
● Available with a capacity of 20 tonnes, suitable for wire rope sizes 1" to 1-1/8"
● ABS, CE, and UKCA Type Approved
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials
● Available with a capacity of 20 tonnes, suitable for wire rope sizes 1" to 1-1/8"
● ABS, CE, and UKCA Type Approved
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials

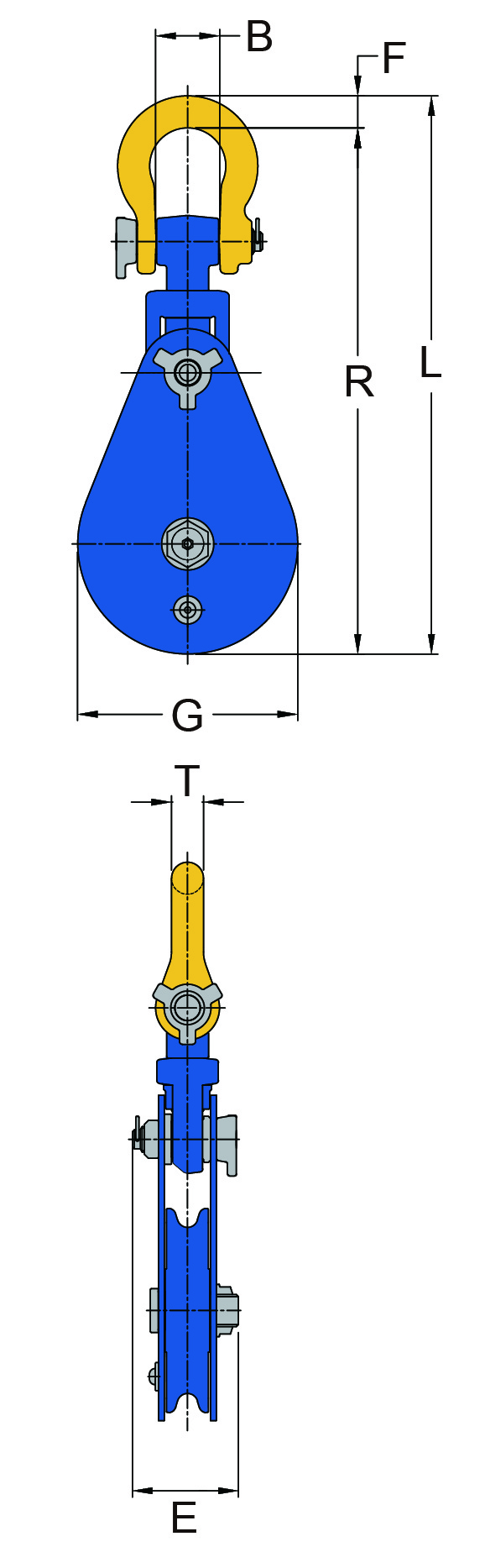

| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type#ibest*128 | Wire Rope Size | Dimensions | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | mm | B | E | F | G | L | R | T | kg | |||
| 8-551-20 | Compare | 20 | 203 | **BB | 25-29 | 93 | 156.5 | 55 | 216 | 671 | 671 | 51 | 42 |
| 8-551-2010 | Compare | 20 | 254 | BB | 25-29 | 93 | 156.5 | 55 | 280 | 778 | 778 | 51 | 54 |
| 8-551-2012-25 | Compare | 20 | 305 | BB | 25 | 93 | 156.5 | 55 | 330 | 833 | 833 | 51 | 63 |
| 8-551-2012-29 | Compare | 20 | 305 | BB | 29 | 93 | 156.5 | 55 | 330 | 833 | 833 | 51 | 63 |
| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type#ibest*128 | Wire Rope Size | Dimensions | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes#ibest*378 | inch#ibest*423 | inch#ibest*425 | B#ibest*138 | E#ibest*374 | F#ibest*164 | G#ibest*141 | L#ibest*150 | R#ibest*145 | T#ibest*153 | lbs#ibest*413 | |||
| 8-551-20 | Compare | 20 | 8 | **BB | 1-1 1/8 | 3.66 | 6.16 | 2.17 | 8.5 | 26.42 | 24.25 | 2.01 | 92 |
| 8-551-2010 | Compare | 20 | 10 | BB | 1-1 1/8 | 3.66 | 6.16 | 2.17 | 11.02 | 30.63 | 28.46 | 2.01 | 119 |
| 8-551-2012-25 | Compare | 20 | 12 | BB | 1 | 3.66 | 6.16 | 2.17 | 12.99 | 32.8 | 30.63 | 2.01 | 139 |
| 8-551-2012-29 | Compare | 20 | 12 | BB | 1 1/8 | 3.66 | 6.16 | 2.17 | 12.99 | 32.8 | 30.63 | 2.01 | 139 |
