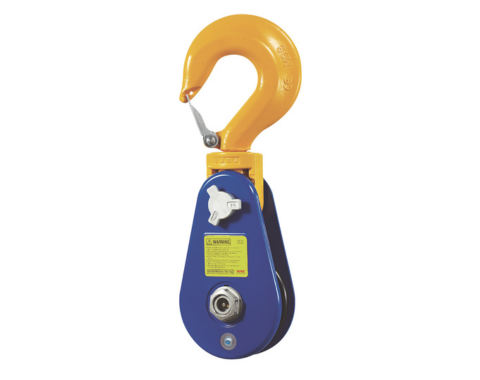

Forged Snatch Block with Hook
Item No.8-542
● YOKE Forged Snatch Blocks are manufactured from high-quality forged alloy steel
● Available in capacities from 12 to 15 tonnes, suitable for wire rope sizes 3/4" to 7/8"
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials
● Available in capacities from 12 to 15 tonnes, suitable for wire rope sizes 3/4" to 7/8"
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials

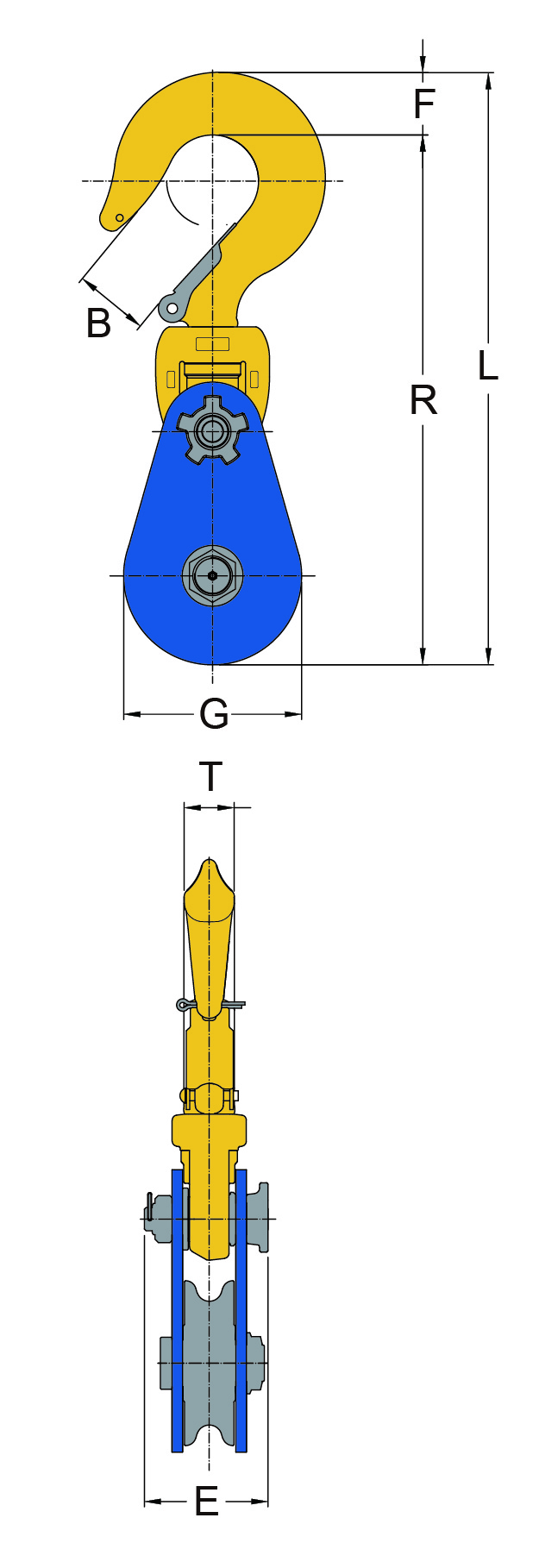

| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | mm | E | F | G | L | R | T | kg | |||
| 8-542-12 | Compare | 12 | 152 | **BB | 19-22 | 140 | 67 | 166 | 565 | 498 | 50 | 24 |
| 8-542-15 | Compare | 15 | 203 | BB | 19-22 | 140 | 67 | 220 | 614 | 547 | 50 | 28 |
| 8-542-1510 | Compare | 15 | 254 | BB | 19-22 | 140 | 67 | 280 | 739 | 672 | 50 | 41 |
| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | inch | E | F | G | H | L | L1 | M | R | T | lbs | |||
| 8-542-12 | Compare | 12 | 6 | **BB | 3/4-7/8 | 5.51 | 2.64 | 6.54 | 22.24 | 22.24 | 2.64 | 6.54 | 19.53 | 1.97 | 52 |
| 8-542-15 | Compare | 15 | 8 | BB | 3/4-7/8 | 5.51 | 2.64 | 8.66 | 24.17 | 24.17 | 2.64 | 8.66 | 21.54 | 1.97 | 61 |
| 8-542-1510 | Compare | 15 | 10 | BB | 3/4-7/8 | 5.51 | 2.64 | 11.02 | 29.09 | 29.09 | 2.64 | 11.02 | 26.46 | 1.97 | 90 |
