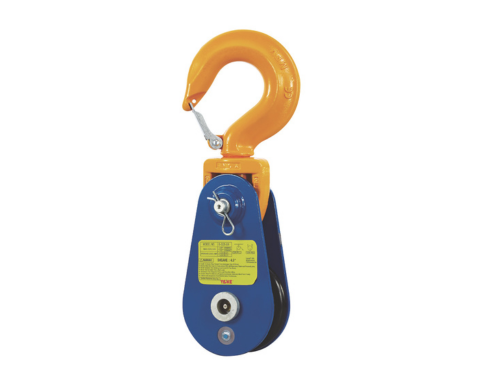

Light Snatch Block with Hook
Item No.8-502
● YOKE Light Snatch Blocks are manufactured from high-quality high-tensile steel
● Available in capacities from 2 to 8 tonnes, suitable for wire rope sizes 5/16" to 3/4"
● ABS Type Approved
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and 3.0"–14" sheaves equipped with pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials
● Available in capacities from 2 to 8 tonnes, suitable for wire rope sizes 5/16" to 3/4"
● ABS Type Approved
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and 3.0"–14" sheaves equipped with pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials

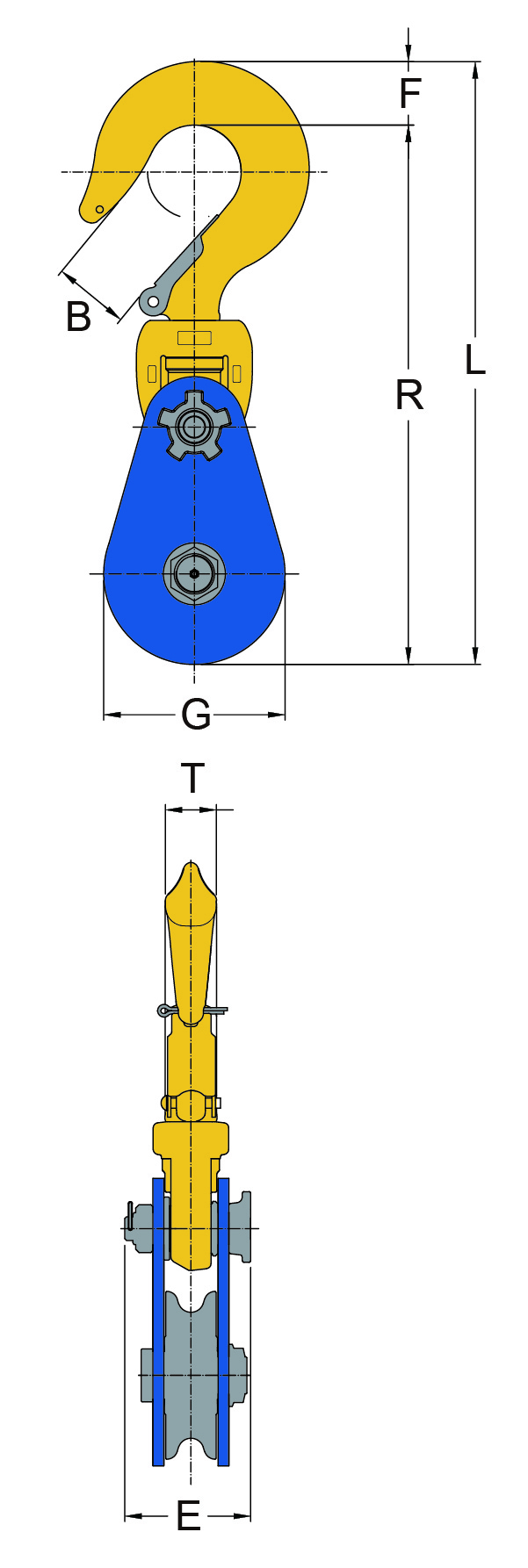

| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | mm | E | F | G | L | R | T | kg | |||
| **8-502-02 | Compare | 2 | 76 | ***BB | 8-10 | 64 | 26 | 75 | 250 | 250 | 20 | 3 |
| 8-502-04 | Compare | 4 | 114 | BB | 10-13 | 82 | 35 | 107 | 355 | 355 | 31 | 6 |
| 8-502-08 | Compare | 8 | 152 | BB | 16-19 | 112 | 61 | 152 | 488 | 488 | 40 | 13 |
| 8-502-0808 | Compare | 8 | 203 | BB | 16-19 | 112 | 61 | 220 | 563 | 563 | 40 | 19 |
| 8-502-0810 | Compare | 8 | 254 | BB | 16-19 | 112 | 61 | 264 | 603 | 603 | 40 | 21 |
| 8-502-0812-16 | Compare | 8 | 305 | BB | 16 | 112 | 61 | 310 | 666 | 666 | 40 | 22 |
| 8-502-0812-19 | Compare | 8 | 305 | BB | 19 | 112 | 61 | 310 | 666 | 666 | 40 | 22 |
| 8-502-0814-16 | Compare | 8 | 356 | BB | 16 | 112 | 61 | 356 | 701 | 701 | 40 | 25 |
| 8-502-0814-19 | Compare | 8 | 356 | BB | 19 | 112 | 61 | 356 | 701 | 701 | 40 | 25 |
| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | inch | E | F | G | L | R | T | lbs | |||
| **8-502-02 | Compare | 2 | 3 | ***BB | 5/16-3/8 | 2.52 | 1.02 | 2.95 | 9.84 | 8.82 | 0.79 | 7 |
| 8-502-04 | Compare | 4 | 4.5 | BB | 3/8-1/2 | 3.23 | 1.38 | 4.21 | 13.98 | 12.6 | 1.22 | 13 |
| 8-502-08 | Compare | 8 | 6 | BB | 5/8-3/4 | 4.41 | 2.4 | 5.98 | 19.21 | 16.81 | 1.57 | 29 |
| 8-502-0808 | Compare | 8 | 8 | BB | 5/8-3/4 | 4.41 | 2.4 | 8.66 | 22.17 | 19.76 | 1.57 | 42 |
| 8-502-0810 | Compare | 8 | 10 | BB | 5/8-3/4 | 4.41 | 2.4 | 10.39 | 23.74 | 21.34 | 1.57 | 45 |
| 8-502-0812-16 | Compare | 8 | 12 | BB | 5/8 | 4.41 | 2.4 | 12.2 | 26.22 | 23.82 | 1.57 | 48 |
| 8-502-0812-19 | Compare | 8 | 12 | BB | 3/4 | 4.41 | 2.4 | 12.2 | 26.22 | 23.82 | 1.57 | 48 |
| 8-502-0814-16 | Compare | 8 | 14 | BB | 5/8 | 4.41 | 2.4 | 14.02 | 27.6 | 25.2 | 1.57 | 55 |
| 8-502-0814-19 | Compare | 8 | 14 | BB | 3/4 | 4.41 | 2.4 | 14.02 | 27.6 | 25.2 | 1.57 | 55 |
