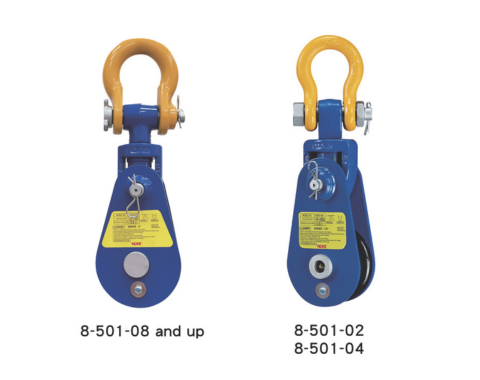

Light Snatch Block with Shackle
Item No.8-501
● YOKE Light Snatch Blocks are manufactured from high-quality high-tensile steel
● Available in capacities from 2 to 8 tonnes, suitable for wire rope sizes 5/16" to 3/4"
● CE and UKCA Type Approved
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and 3.0"–14" sheaves equipped with pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials
● Available in capacities from 2 to 8 tonnes, suitable for wire rope sizes 5/16" to 3/4"
● CE and UKCA Type Approved
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and 3.0"–14" sheaves equipped with pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials

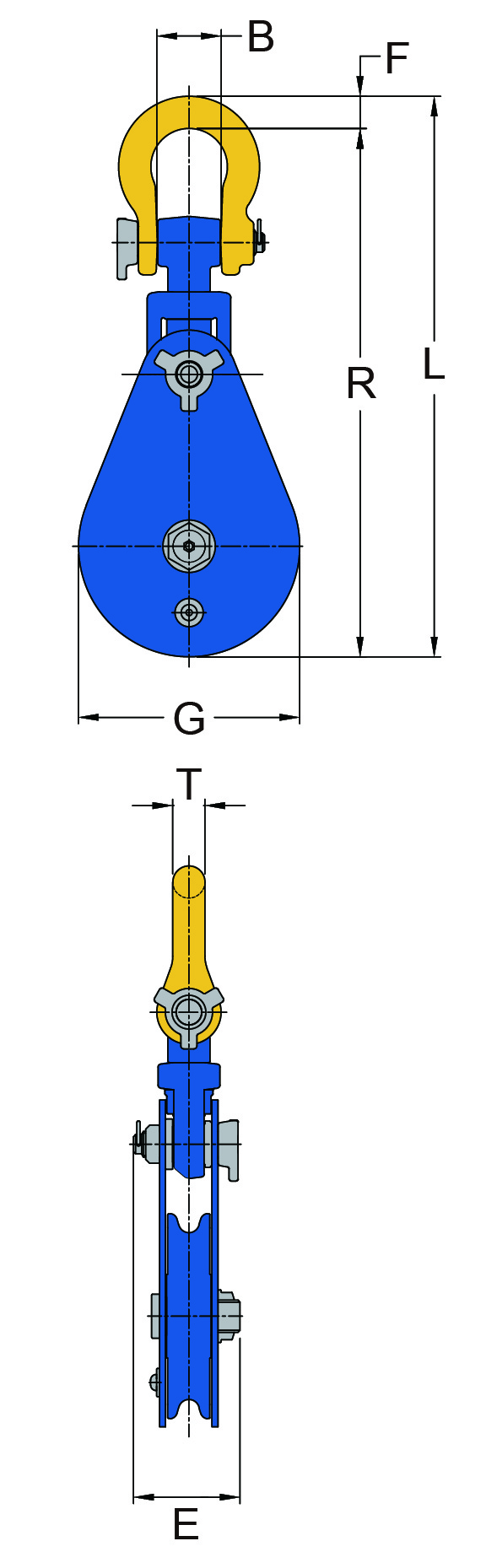

| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | mm | E | F | G | L | R | T | kg | |||
| **8-501-02 | Compare | 2 | 76 | ***BB | 8-10 | 64 | 11 | 75 | 228 | 217 | 11 | 2 |
| 8-501-04 | Compare | 4 | 114 | BB | 10-13 | 82 | 19 | 108 | 355 | 336 | 19 | 6 |
| 8-501-08 | Compare | 8 | 152 | BB | 16-19 | 112 | 32 | 152 | 483 | 451 | 32 | 13 |
| 8-501-0808 | Compare | 8 | 203 | BB | 16-19 | 112 | 32 | 220 | 557 | 525 | 32 | 20 |
| 8-501-0810 | Compare | 8 | 254 | BB | 16-19 | 112 | 32 | 264 | 598 | 566 | 32 | 21 |
| 8-501-0812-16 | Compare | 8 | 305 | BB | 16 | 112 | 32 | 310 | 658 | 626 | 32 | 22 |
| 8-501-0812-19 | Compare | 8 | 305 | BB | 19 | 112 | 32 | 310 | 658 | 626 | 32 | 22 |
| 8-501-0814-16 | Compare | 8 | 356 | BB | 16 | 112 | 32 | 356 | 696 | 664 | 32 | 25 |
| 8-501-0814-19 | Compare | 8 | 356 | BB | 19 | 112 | 32 | 356 | 696 | 664 | 32 | 25 |
| Item NO. | Compare | Working Load Limit | Sheave Dia. | Bearing Type | Wire Rope Size | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | inch | E | F | G | L | R | T | lbs | |||
| **8-501-02 | Compare | 2 | 3 | ***BB | 5/16-3/8 | 2.52 | 0.43 | 2.95 | 8.98 | 8.54 | 0.43 | 4 |
| 8-501-04 | Compare | 4 | 4.5 | BB | 3/8-1/2 | 3.23 | 0.75 | 4.25 | 13.98 | 13.23 | 0.75 | 13 |
| 8-501-08 | Compare | 8 | 6 | BB | 5/8-3/4 | 4.41 | 1.26 | 5.98 | 19.02 | 17.76 | 1.26 | 29 |
| 8-501-0808 | Compare | 8 | 8 | BB | 5/8-3/4 | 4.41 | 1.26 | 8.66 | 21.93 | 20.67 | 1.26 | 44 |
| 8-501-0810 | Compare | 8 | 10 | BB | 5/8-3/4 | 4.41 | 1.26 | 10.39 | 23.54 | 22.28 | 1.26 | 46 |
| 8-501-0812-16 | Compare | 8 | 12 | BB | 5/8 | 4.41 | 1.26 | 12.2 | 25.91 | 24.65 | 1.26 | 49 |
| 8-501-0812-19 | Compare | 8 | 12 | BB | 3/4 | 4.41 | 1.26 | 12.2 | 25.91 | 24.65 | 1.26 | 49 |
| 8-501-0814-16 | Compare | 8 | 14 | BB | 5/8 | 4.41 | 1.26 | 14.02 | 27.4 | 26.14 | 1.26 | 56 |
| 8-501-0814-19 | Compare | 8 | 14 | BB | 3/4 | 4.41 | 1.26 | 14.02 | 27.4 | 26.14 | 1.26 | 56 |
